CNCR is a global leading supplier providing telecom access network solutions. Since the company was successfully listed in 2011, CNCR has always adhered to independent research and development and technological innovation, and successfully passed the highest level CMMI5 certification in the global software field.




First 12345 Last

Why Choose Us
1

Professional Engineer

500+ experts provides innovative solutions to ensure project quality and reliability.

2

Customizable R&D

Meet personalized needs, reduce costs, protect intellectual property rights, improve competitiveness, and enhance user experience.

3

Real-Time Support

7*24 hours global technical support service, quickly solve problems and improve user experience.

4

Certified Quality

CNCR products have passed various international certifications such as ISO, CE, ROHS, improve customers' market competitiveness.



Types of Info Access



IPPBX 16FXS



01

IPPBX 16FXS

IPPBX (IP Private Branch Exchange), the device supports access to the operator's IMS core network through IP trunks, and supports access to PSTN (Public Switched Telephone Network) through digital trunks/analog trunks.

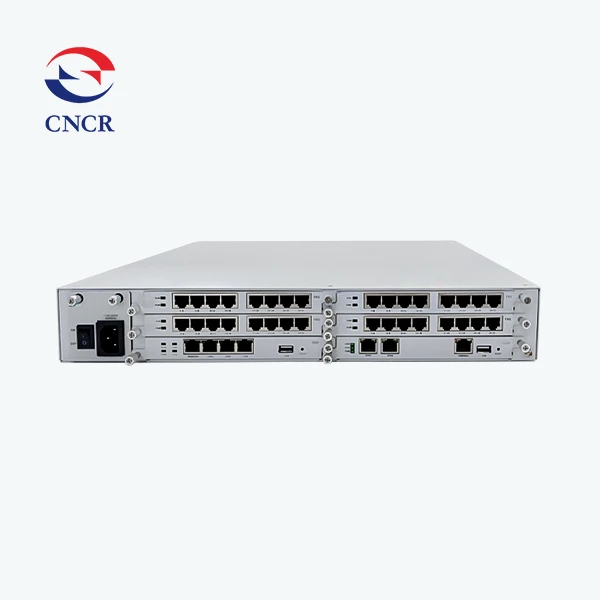

128 line IPPbx System



02

128 line IPPbx System

128 line IPPbx system can connect to voice gateways, analog phones, fax machines, POS machines, IP phones and other terminals, and can provide powerful voice functions and telephone services.

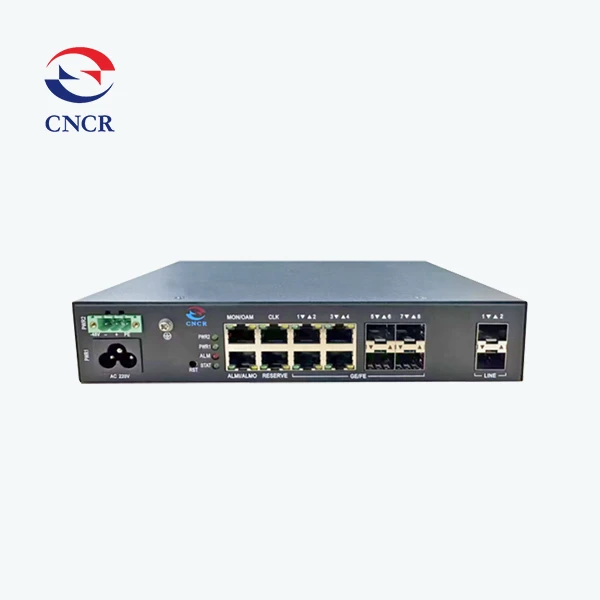

Ethernet Demarcation Device



03

Ethernet Demarcation Device

CTN0100-108 series are designed for 1G/10G leased line service delivery and 4G/5G mobile back hauling. They are the most compact and cost-effective MPLS Customer Edge devices, providing customers with affordable MPLS network accessibility.

Bonded Vdsl2 Modem



04

Bonded Vdsl2 Modem

Overview CL75B is a powerful VDSL2 Wired Router, provides high speed, stable and secure Internet access for users. Its Dual Core CPU runs at the speed of 500Mhz/300Mhz, so that to ensure the high performance of the CPE.



Best Ip Pbx Phone System Parameters





Classification

Product model

IPPBX1800G-S32O8

Equipment appearance

Dimension(L*W*H)

440*224.5*44mm

Chassis

1U,Metal Material

Interface

FXS port

32

FXO port

8

ETH port

1*WAN+3*LAN,4*GE(RJ45)

USB port

1*full/High Speed USB2.0 port

Console port

1*Console port,RJ45,115200bps

Operating environment

Power

45W

Voltage

AC 110V-240V

Temperature and humidity

-5℃～55℃,<95%(Non-condensing)

Barometric pressure

86KPa~106KPa

Reliability

7×24hours,Reliability is greater than 99.999%;MTBF>50000



Advantages of Best Ip Pbx Phone System

Cost savings

IP PBX phone systems can be more cost-effective than traditional PBXs and other communication solutions, as they use IP networks to transmit voice and data signals, which can be less expensive than traditional telephone circuits.



Scalability

IP PBX phone systems are highly scalable and can be easily expanded as your business grows, allowing you to add new users and features as needed.



Flexibility

IP PBX phone systems are often configurable through a web-based interface, allowing administrators to easily manage the system and make changes as needed.



Improved call quality

IP PBX phone systems use digital signaling, which can result in improved call quality compared to traditional analog systems.

Advanced features

IP PBX phone systems are equipped with a range of advanced features, such as call forwarding, voicemail, conference calling, and others, which can improve the efficiency and productivity of your organization.

Integration with other systems

IP PBX phone systems can be integrated with other systems, such as customer relationship management (CRM) software, making it easier for your employees to access information and communicate with customers.

Disaster recovery

IP PBX phone systems can be deployed in the cloud, providing built-in disaster recovery capabilities, which can ensure that your business stays connected even in the event of an unexpected outage.



PBX and IP PBX Phone System Features Comparison


Now that we’re done discussing the key differences between traditional PBX and IP PBX phone system, here is a summary of the main differences between the two for your reference.

PBX

IP PBX

Handles calls and call-forwarding systems

Can handle calls, texts, video calling, and more.

Limited to the designed number of slots

Highly scalable

Works via wired telephone networks

Connects devices over the internet

Functionalities are done by hardware

Functionalities are done by software

Requires equipment installed on-premise, which needs constant maintenance.

Does not necessarily require on-premise equipment.

Cybersecurity is not an issue.

Firewalls need to be installed to tackle cybersecurity concerns.





IP PBX Phone System Common Features
01.

Call Control features

This includes Voicemail, Conditional Call forwarding, Call transfer, conference calls, and more built-in features.

02.

Call Routing Rules

You can define rules to route incoming and outgoing calls to any port or extension based on call patterns or caller extension.

03.

Call Monitoring

It can record calls across the network and log the calls made from all of the extensions within the network.

04.

Backup and Recovery

It usually comes with backup for settings and logs, with scheduled backups to internal storage or network storage.



Application of IP PBX Phone System



E-commerce Operators

As an E-commerce business, speed is of the essence for you, including your phone system. A IP PBX phone system can enable you not to keep your customers waiting by directing them to the right team member using an autoresponder.





Family Businesses

A majority of family businesses are small. That means you need a communication system that will grow with you. A IP PBX phone system gives you the flexibility to add phones and numbers as you bring on more workers.





Tourism and Hospitality

A IP PBX phone system can enable auto-responding to customers during peak season for seasonal businesses such as tourism and hospitality. By deploying a IP PBX that supports an answering service, you don’t waste time responding to frequent inquiries, which can lead to losing more business.





8 FXS Voice Gateway Parameters





Product model

IAD1800G-S4

IAD1800G-S8

Network interface

4GE,RJ45

4GE,RJ45

FXS port

4,RJ11 port

8,RJ11 port

SIP-Analog channel

4

8

Console port

1,RJ45

1,RJ45

USB

1 USB2.0

1 USB2.0

Working power supply

DC12V,1.5A

100VAC～240VAC;50/60Hz

The case

1U,Metal material

1U,Metal material

The most powerful

15W

20W

Size

230×140×33mm

340×210×43.5mm



Advantages of 8 FXS Voice Gateway


Cost Efficiency

FXS voice gateways, businesses retain their analog phones and fax machines and cut down on hardware upgrade costs.



Multi-Port Connectivity

Supports up to 8 analog devices simultaneously, ideal for small to medium businesses.



Easy Integration

FXS voice gateways integrate into already existing IP networks, with which businesses can reap the advantages of VoIP without having to transform their communication infrastructure completely.



Scalability

These gateways offer a solution that can be scaled with your business while it grows. As the organization expands additional gateways or ports can be installed to support more devices.



Enhanced Call Quality

Delivers high-definition voice quality, ensuring clearer communication and improved customer satisfaction.



Reliability

Even if the IP network has some errors the FXS voice gateways are always ensuring that the business connects through telephony services.



Application of 8 FXS Voice Gateway




Call Centers

Used extensively in call centers for managing incoming and outgoing calls efficiently, enabling high-quality voice communication.




Small to Medium Enterprises

Perfect for businesses with networked analog devices, facilitating easy integration into existing infrastructures.




Remote Work Environments

Assists in connecting remote workers with main offices through VoIP solutions, ensuring continuity in operations.




Hotels and Hospitality

Helps streamline communication among staff and with guests, providing better service and response times.






Usage Requirements

01/

Ensure the device is connected to a reliable power source with appropriate voltage to avoid unexpected shutdowns or damage.

02/

Set up IP addresses, subnet masks, and gateways correctly to ensure seamless communication over the network.

03/

Connect only supported analog telephones or fax machines to the FXS ports to maintain optimal performance.

04/

Configure SIP account details accurately to allow proper registration and communication with the VoIP server.



productcate-1-1



Order Process

☆Contact our sales team online via email at sarah.gu@cncr-it.com and provide the products and quantities you need to order and your customization requirements.


☆Once we receive your custom requirements, we will contact you via email to confirm your order requirements.


☆Once everything is confirmed, we will send you a quotation for your approval.


☆Once we get your approval, we will start processing your custom order.


☆Our technicians will control the quality during the production process.


☆According to the delivery time, we will arrange shipment after receiving the remaining payment.



Payment & Delivery





Accepted Delivery Terms: FOB, CIF, FCA, EXW；

Accepted Payment Currency:

 USD;

Port:

 Xiamen ,China

Accepted Payment Type:

 T/T,L/C,Credit Card,PayPal,Western Union

productcate-1-1



Video







Patents & Certificates



In pursuing innovation of cutting-edge technologies, CNCR has been publishing patents every year.

productcate-1-1
productcate-1-1
productcate-1-1
productcate-1-1



Factory Environment


productcate-1-1
productcate-1-1
productcate-1-1
productcate-1-1



FAQ



Q: Are you trading company or manufacturer?

A: We are manufacturer, having our own factories.

Q: Do you provide samples ? is it free or extra?

A: Sorry, we can not provide free samples

Q: How long is your delivery time?

A: Generally, if the goods are in stock, shipment can be arranged within 3 working days;
If the goods need to be mass produced, delivery time may be around 7-10 working days.

Q: How long i can get the feedback after we sent the enquiry?

A: We will reply you within 12 hours in working day.

Q: Can you do our design?

A: Of course, your customized design (OEM) is available.

Q: Can you make our design for the package?

A: Yes, please send us the design you need ,we will value the price and make the exact same package basing on your design.

Q: What is the difference between IP PBX and PABX?

A: A PABX (Private Automatic Branch Exchange) is an automated version of a traditional PBX that automatically routes calls. In contrast, an IP PBX operates over an internet network to transmit calls, providing more scalability and flexibility.

Q: What is the difference between EPABX and IP PBX?

A: EPABX, which stands for Electronic Private Automatic Branch Exchange, is an electronic switching system that relies on physical hardware and traditional phone lines and is used for internal call routing. At the same time, IP PBX is an internet-based system that offers more advanced features like VoIP integration, remote access, and cloud connectivity.

Q: What are the maintenance requirements for IP PBX phone systems?

A: Unlike traditional PBX systems that require an in-house team of technicians to troubleshoot issues, most maintenance-related work can be done remotely via software for an IP PBX phone system.

Q: What is the purpose of the 8 FXS voice gateway?

A: Simply put, a voice gateway terminates time division multiplexing (TDM) signaling and transmits it by way of IP into the network or vice-versa. This allows calls to/from the PSTN network over traditional PSTN trunks, for example, ISDN T1, E1, and BRI trunks.

Q: How does 8 FXS voice gateway work?

A: When receiving voice packets from the VoIP network, the FXS voice gateway converts the digital packets back into analog signals, which are then transmitted to the connected analog device, allowing the user to hear the voice communication.

Q: What is the difference between FXO voice gateway and FXS voice gateway?

A: These ports are used to allow you to connect your analog phones to a VoIP system. An FXS port helps you connect your analog fax machine to your VoIP phone system; an FXO port enables you to use analog telephone lines with your VoIP phone system.
